铁硅磁粉芯Fe-Si Core(TDF)提供中低频率的电感器和扼流圈下一种经济型的高饱和度(1.6T) 解决方案。高饱和度有利于在负载設計下电感是关鍵的应用，如使用新能源(太阳能/风能/混合动力)的变频器，功率因数校正推动，和不间断电源UPS 。
铁硅合金磁粉芯具有分布式气隙，由6.5％的硅铁粉末制成，其磁芯损耗比铁粉芯更低。
为带来更好的体验，手机浏览时请 旋转屏幕 ！

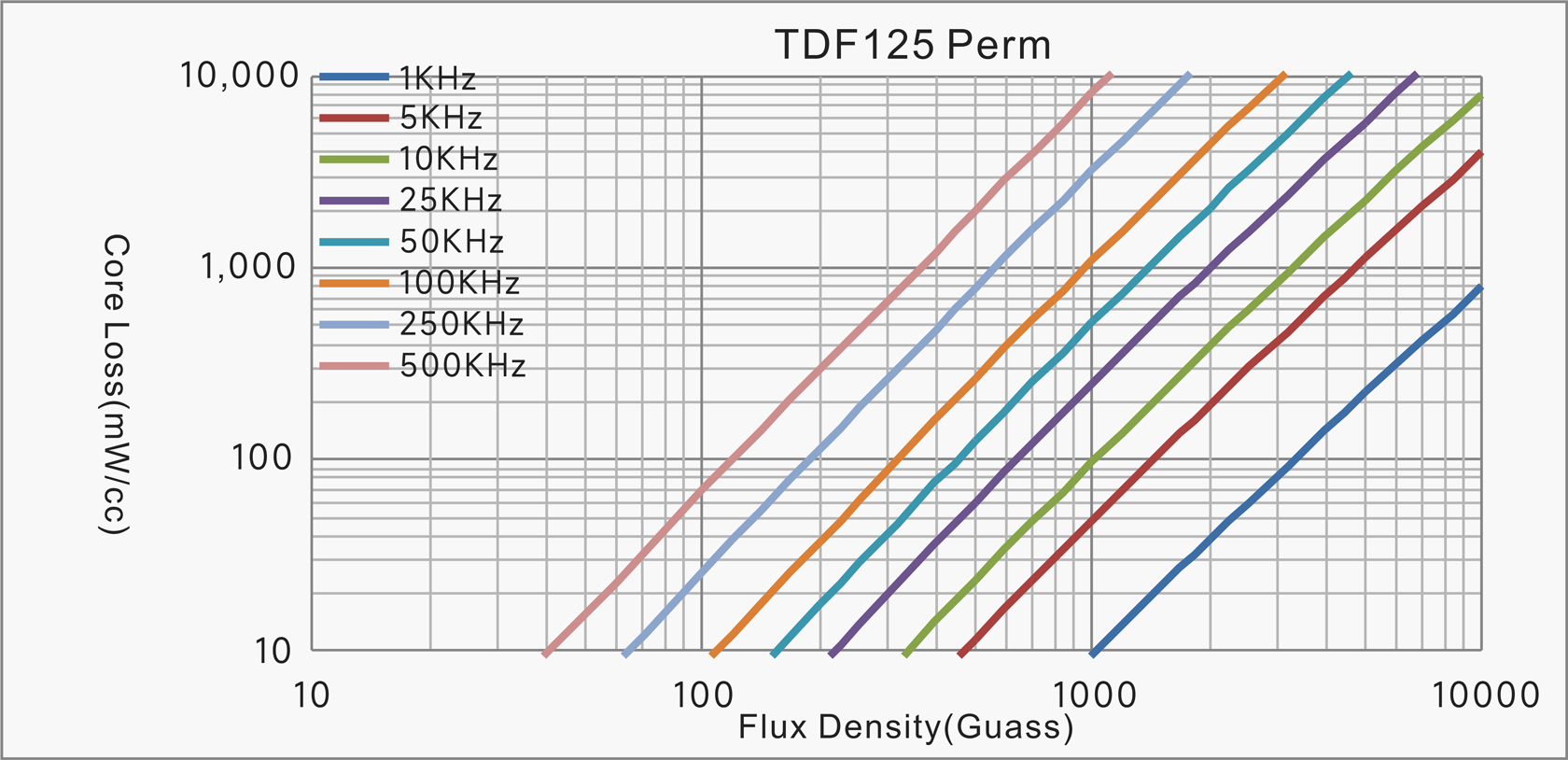

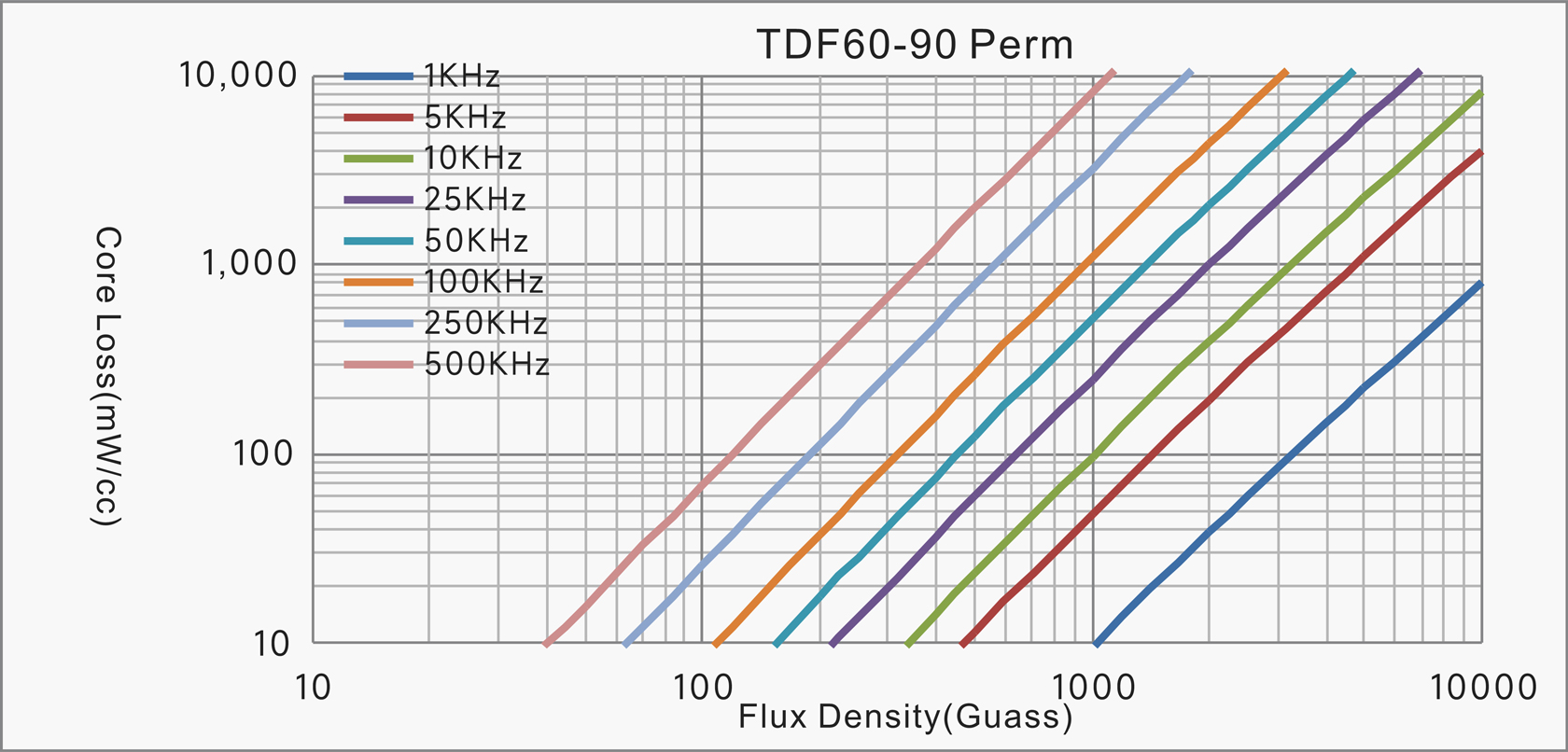

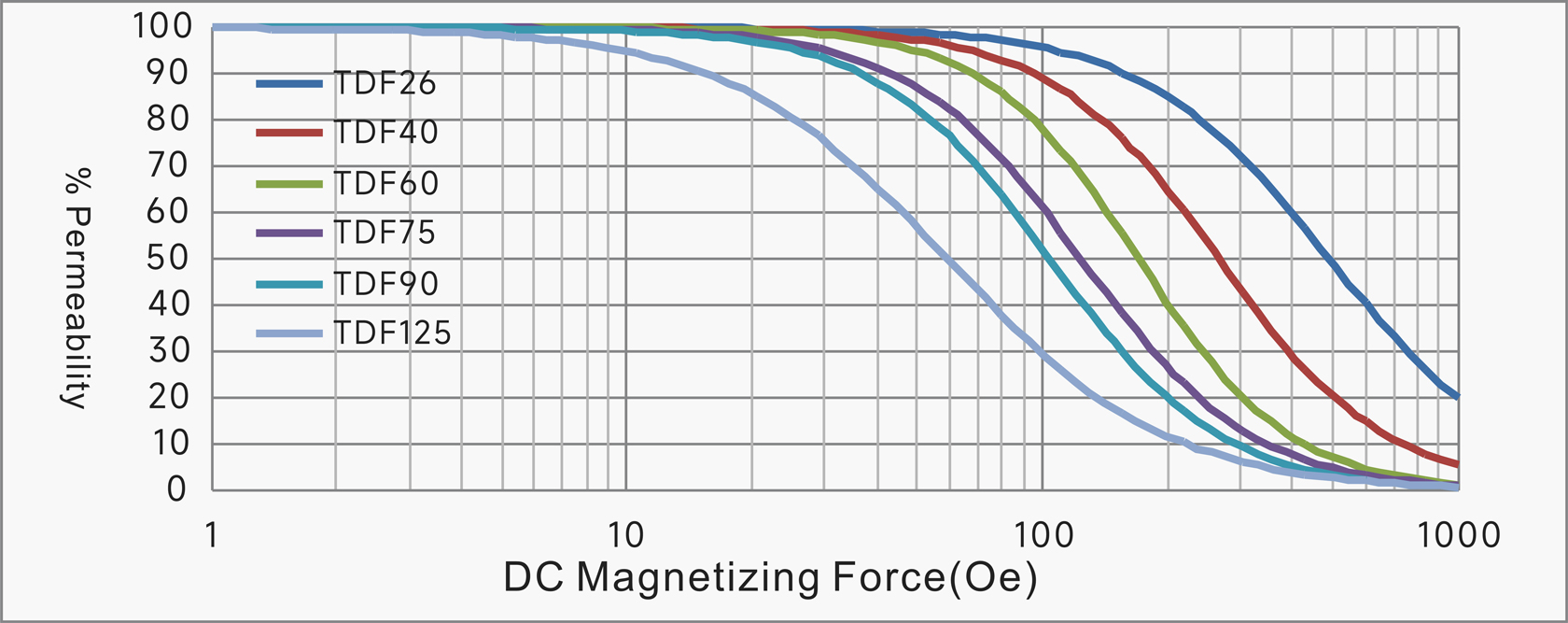

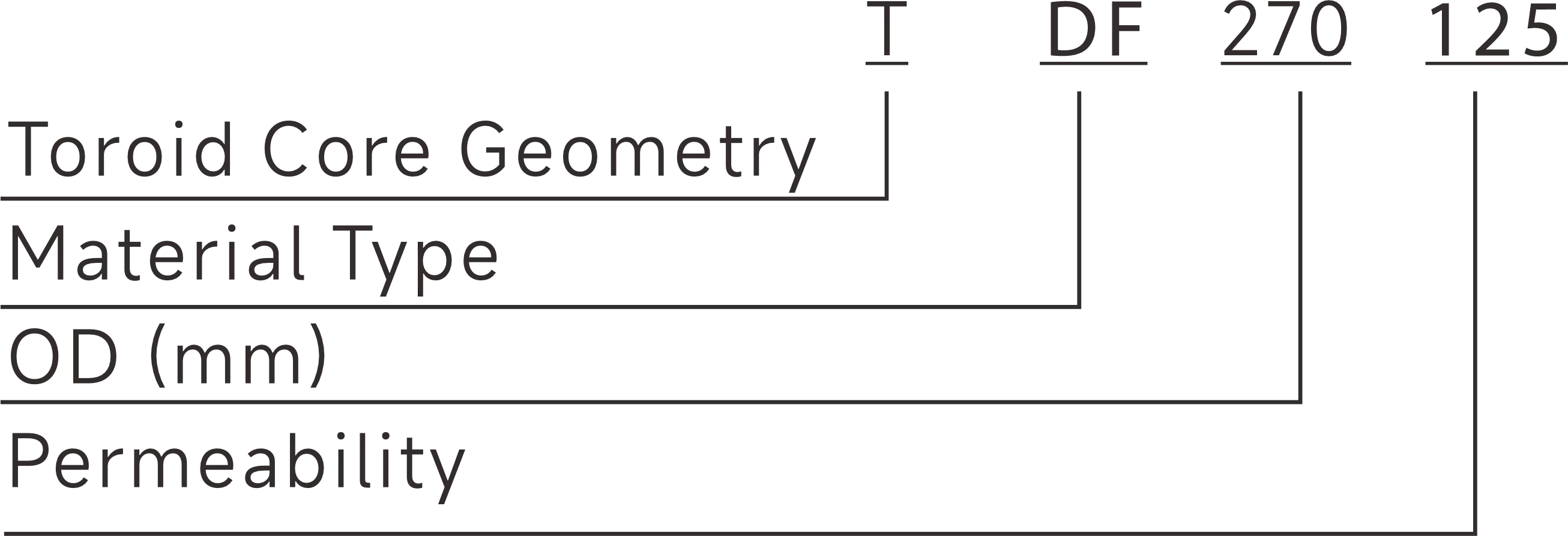

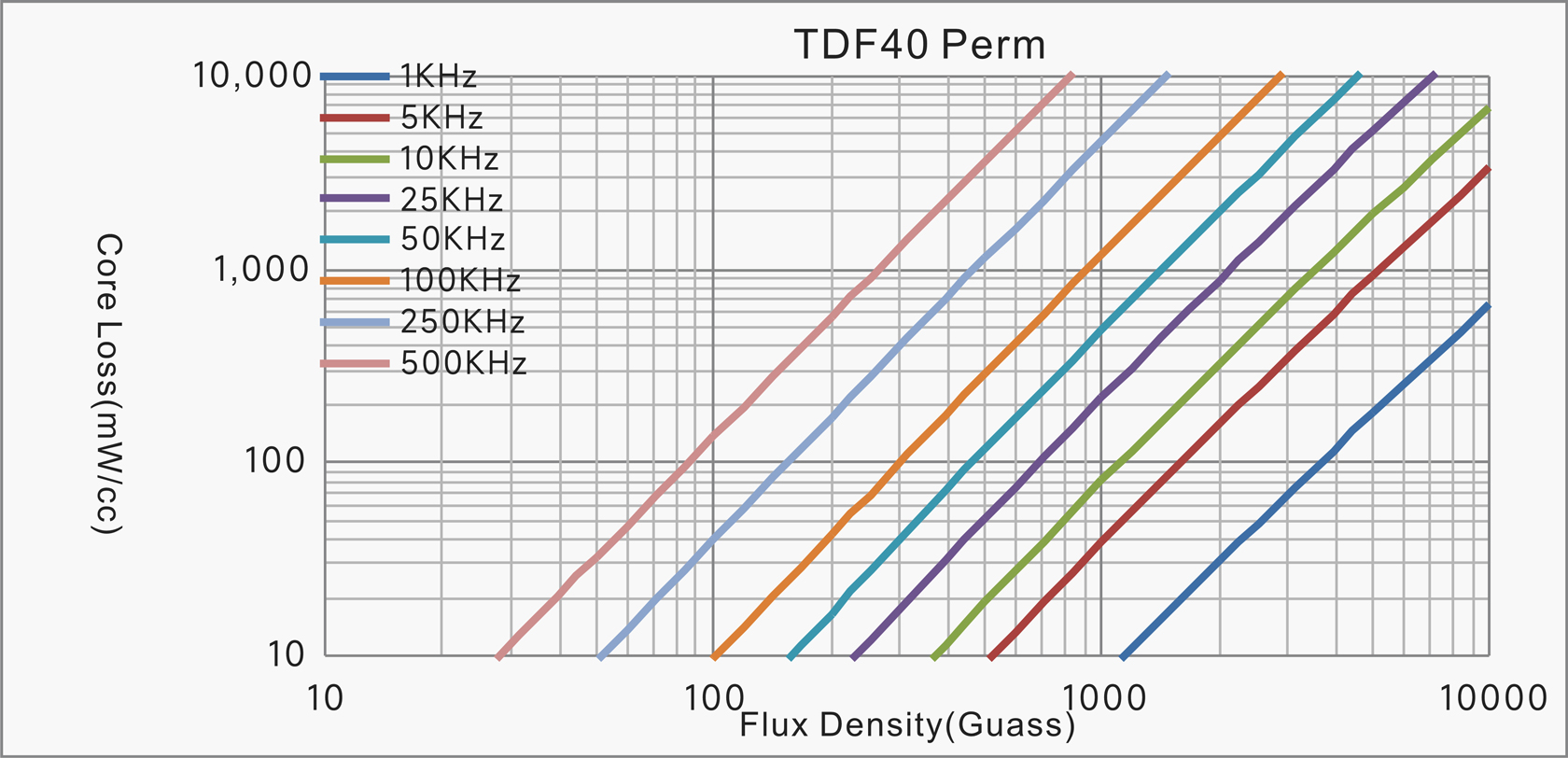

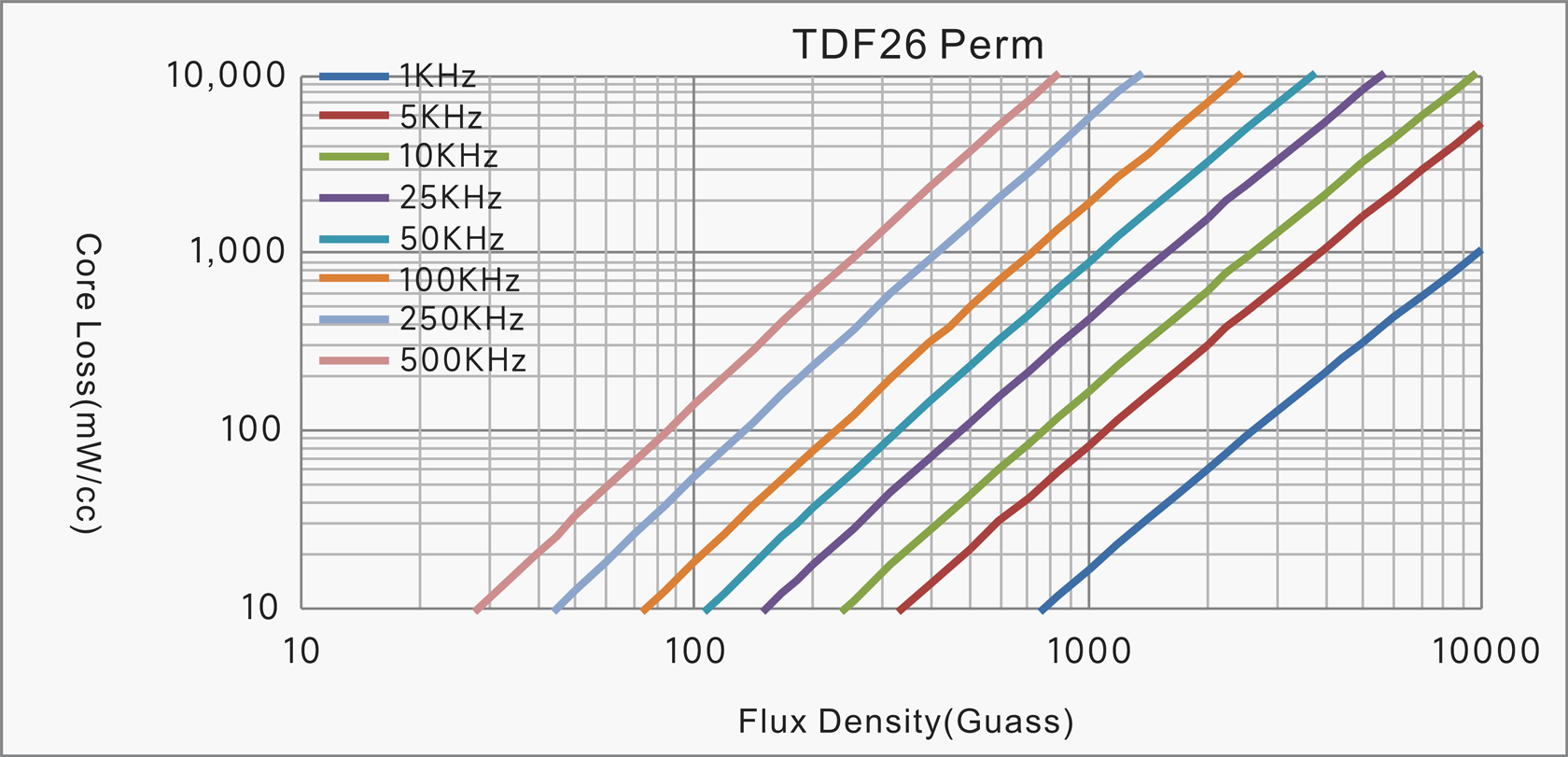

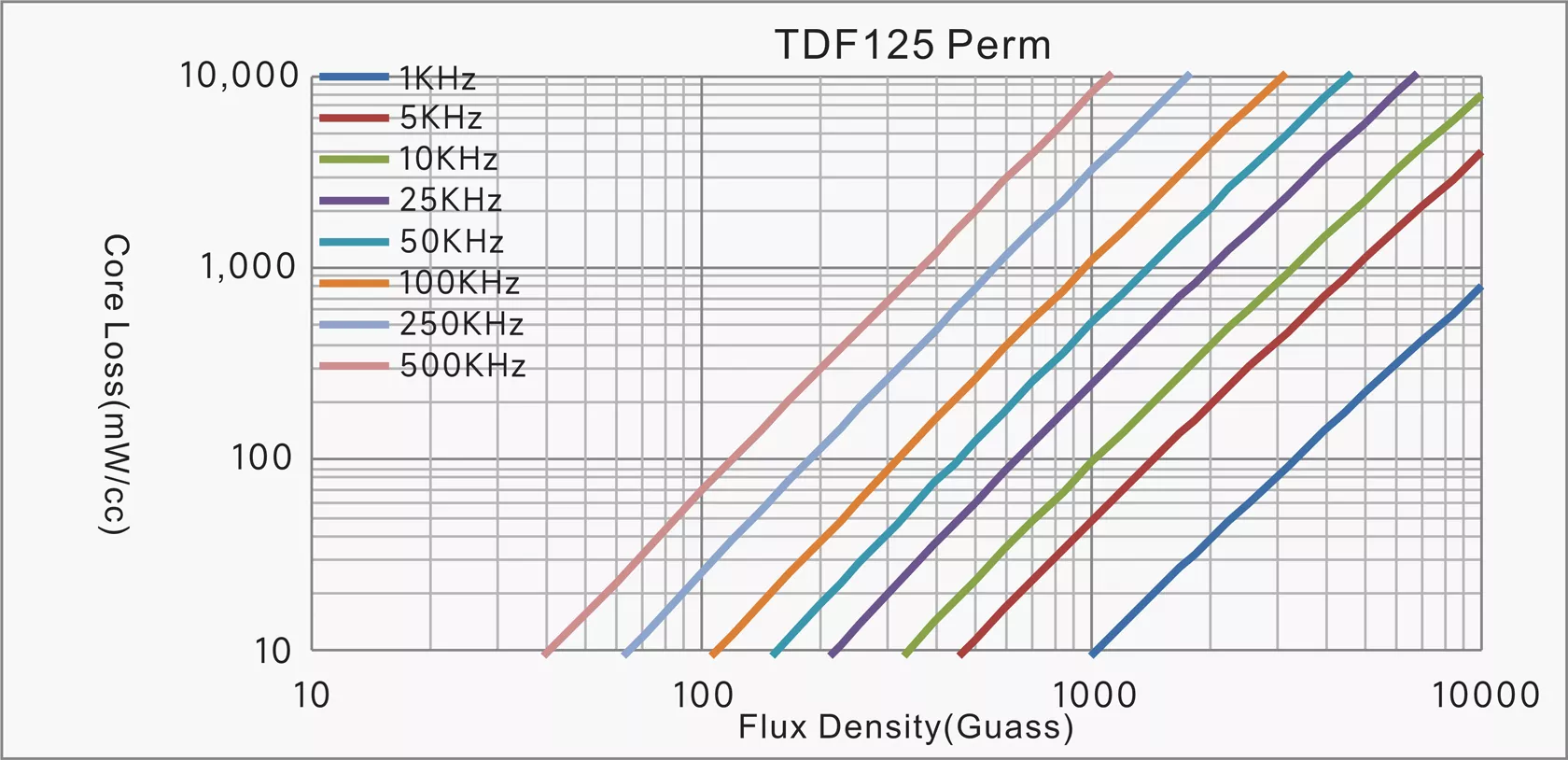

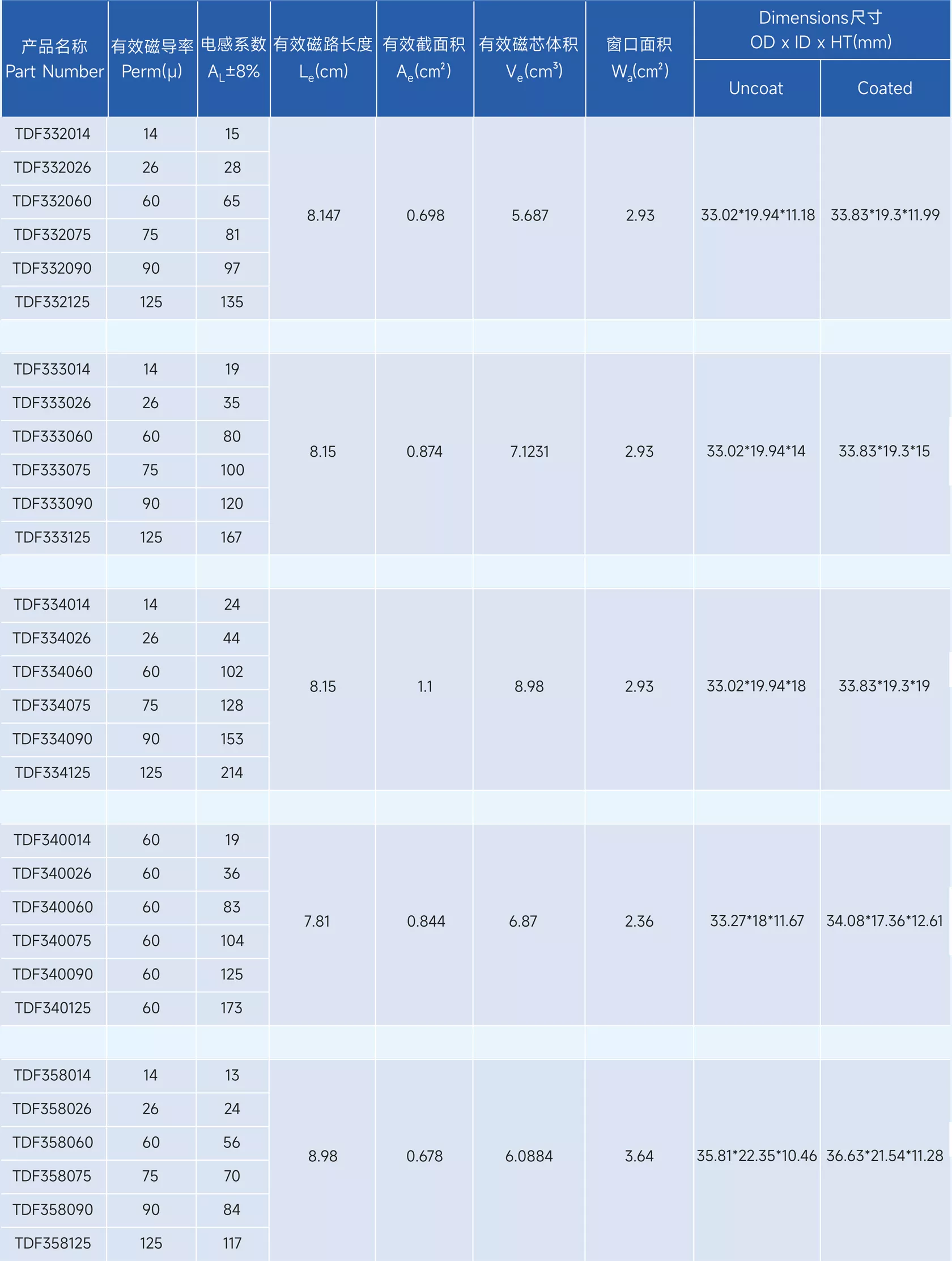

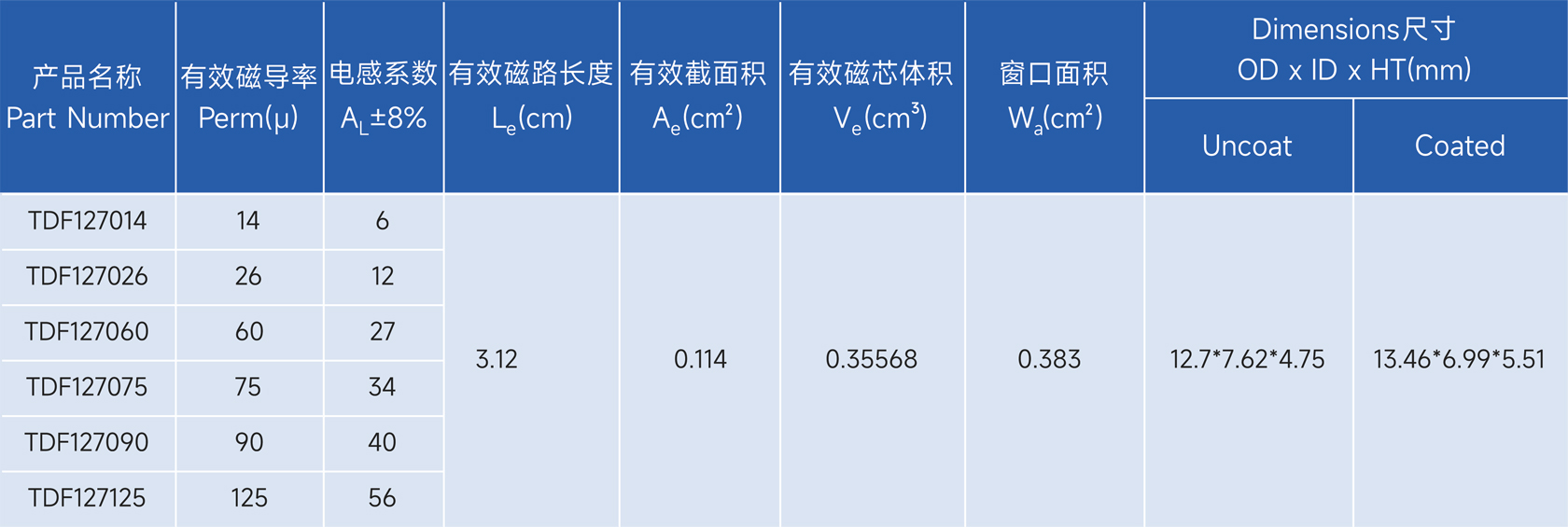

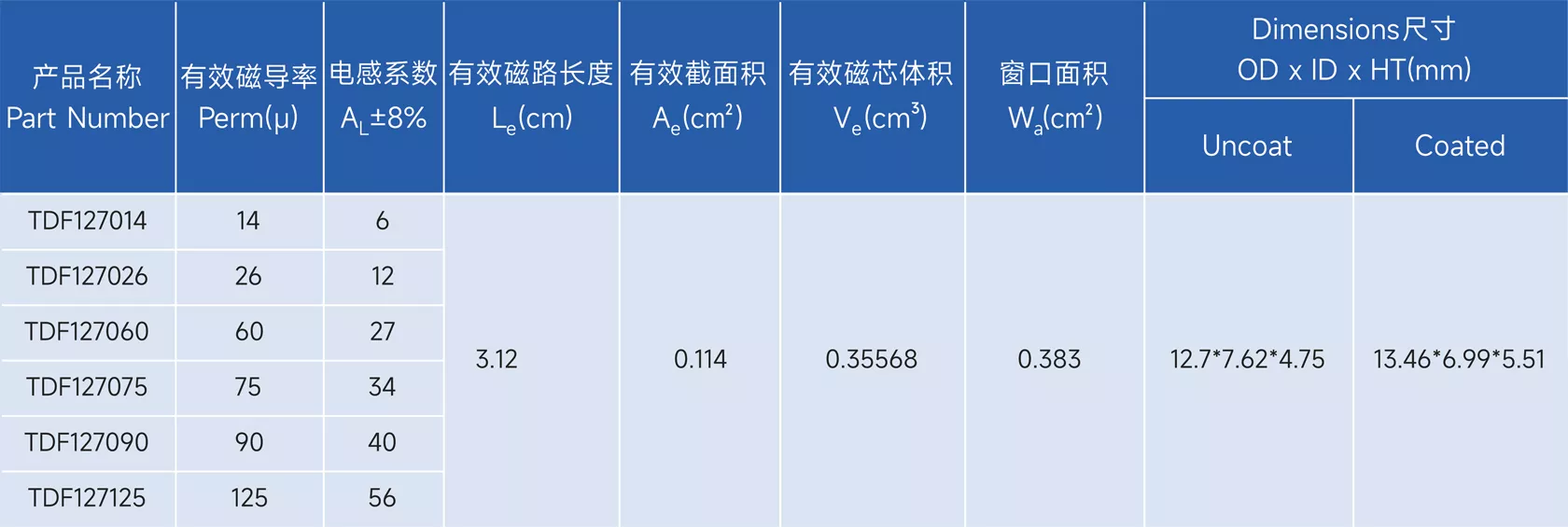

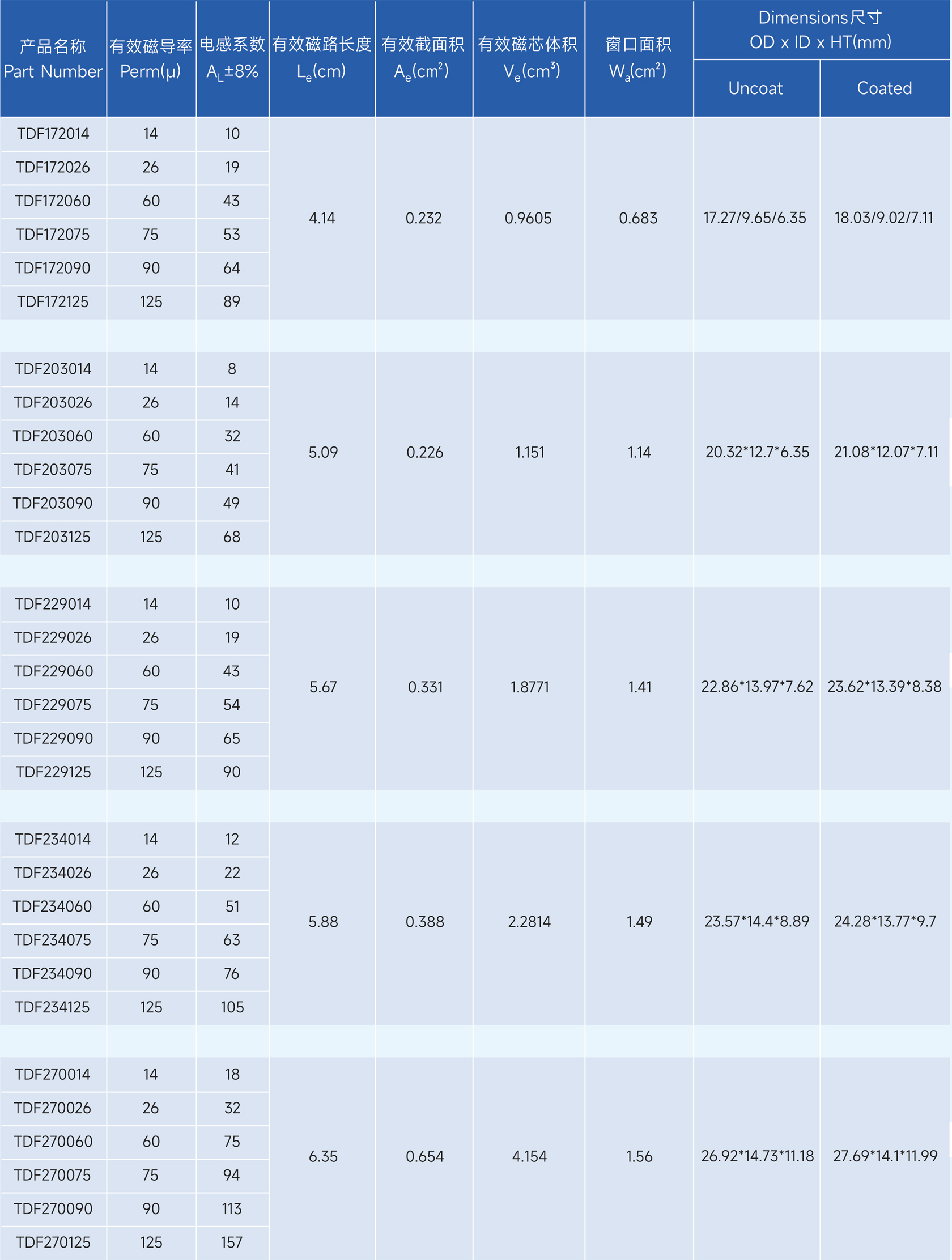

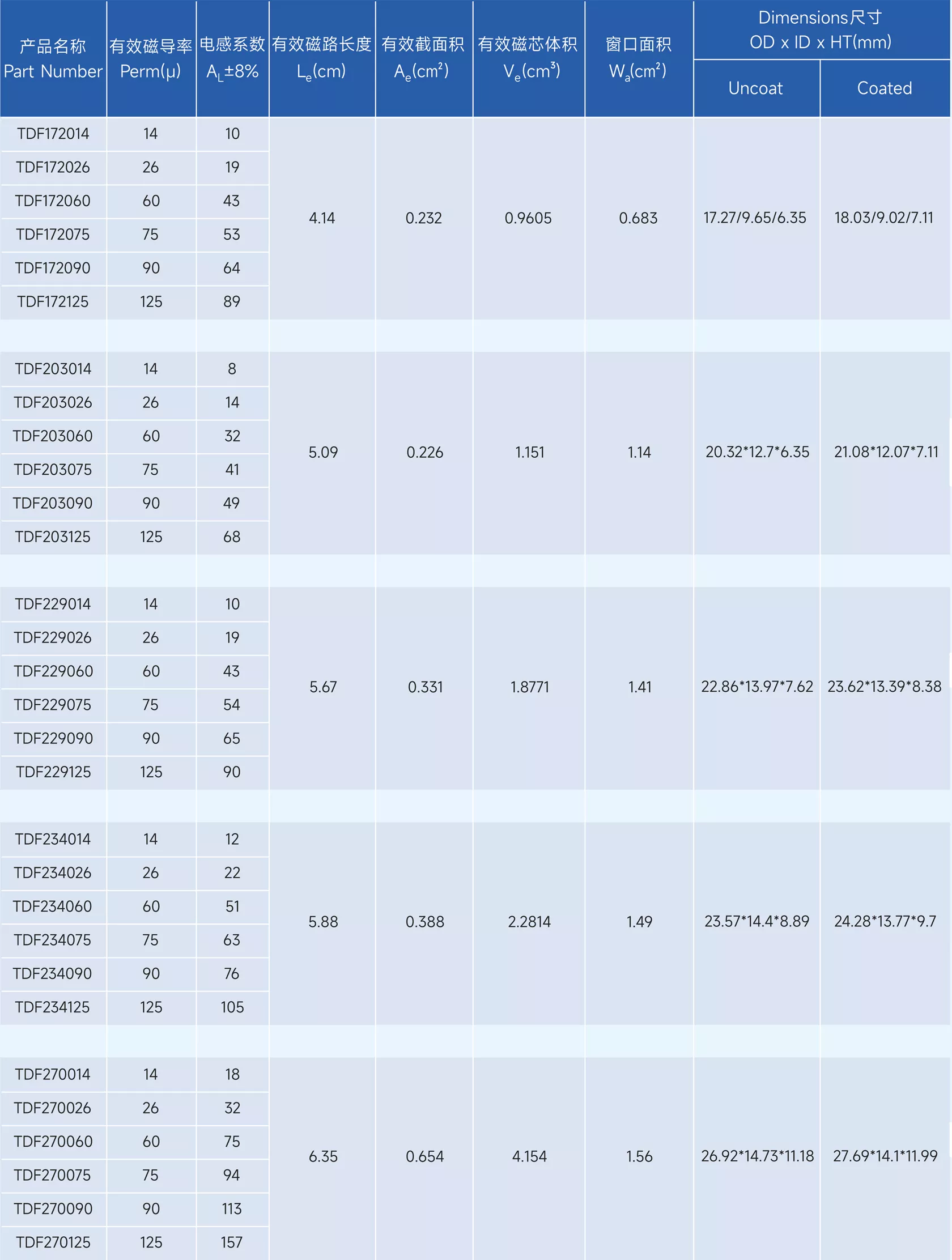

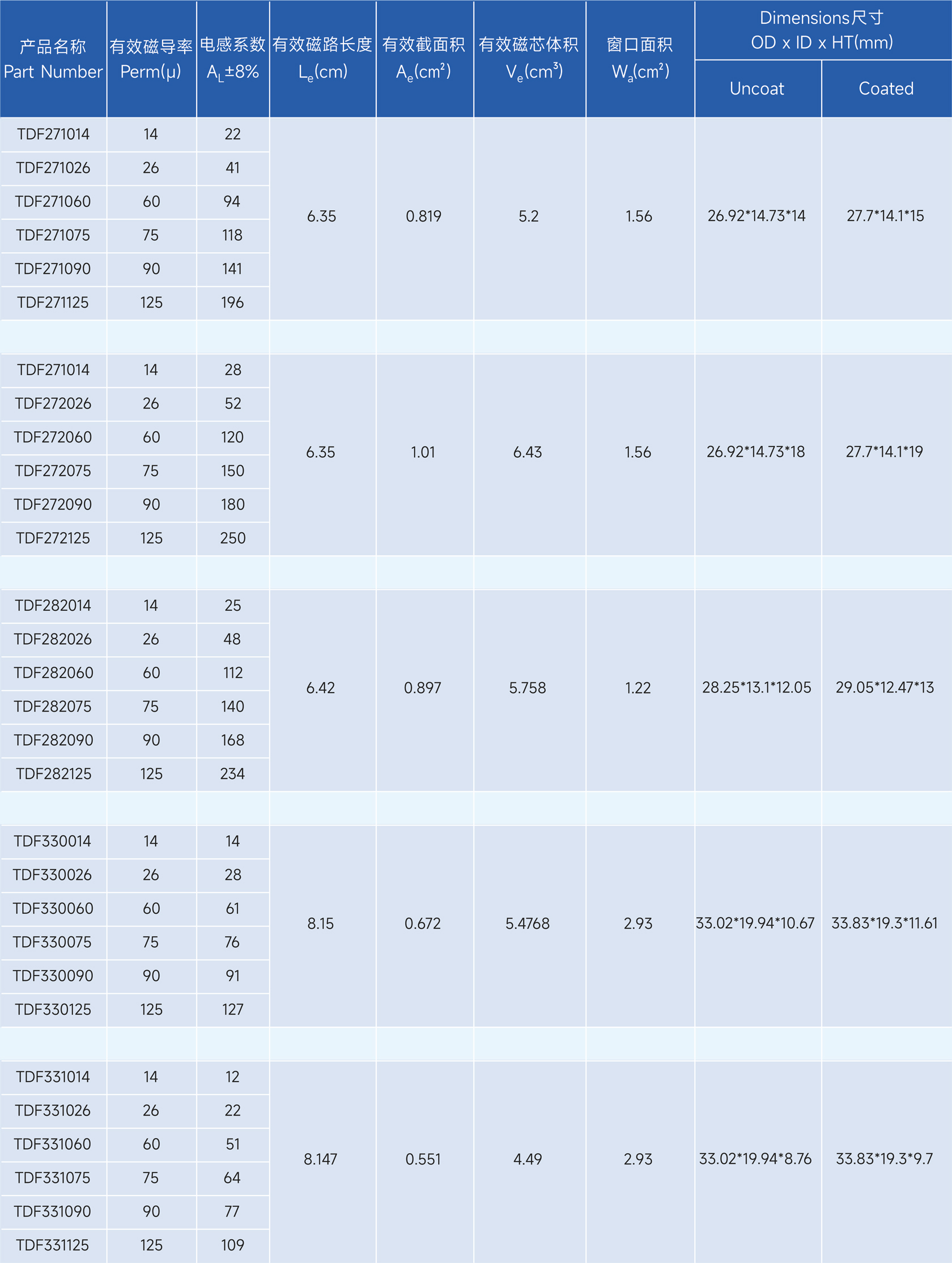

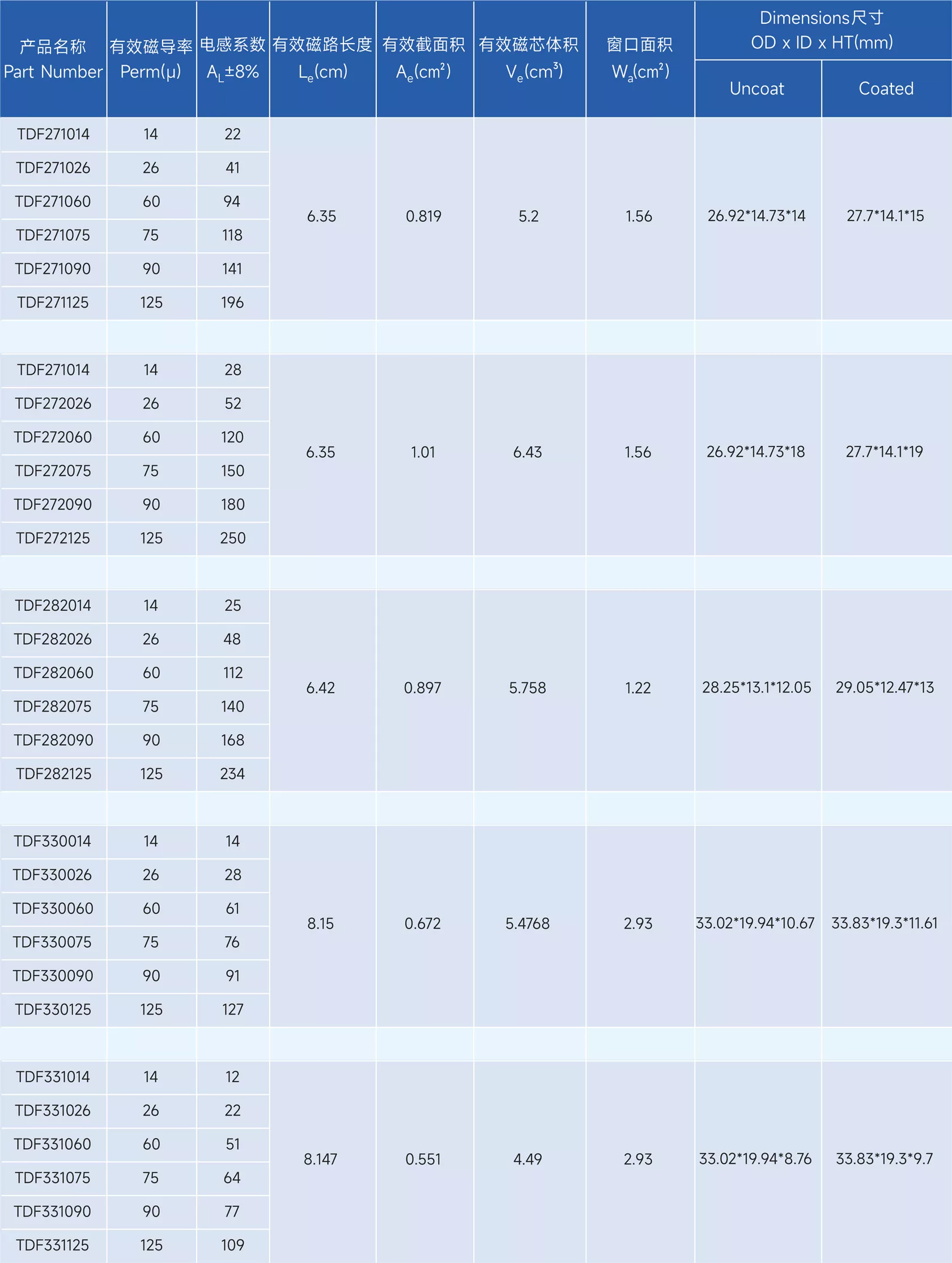

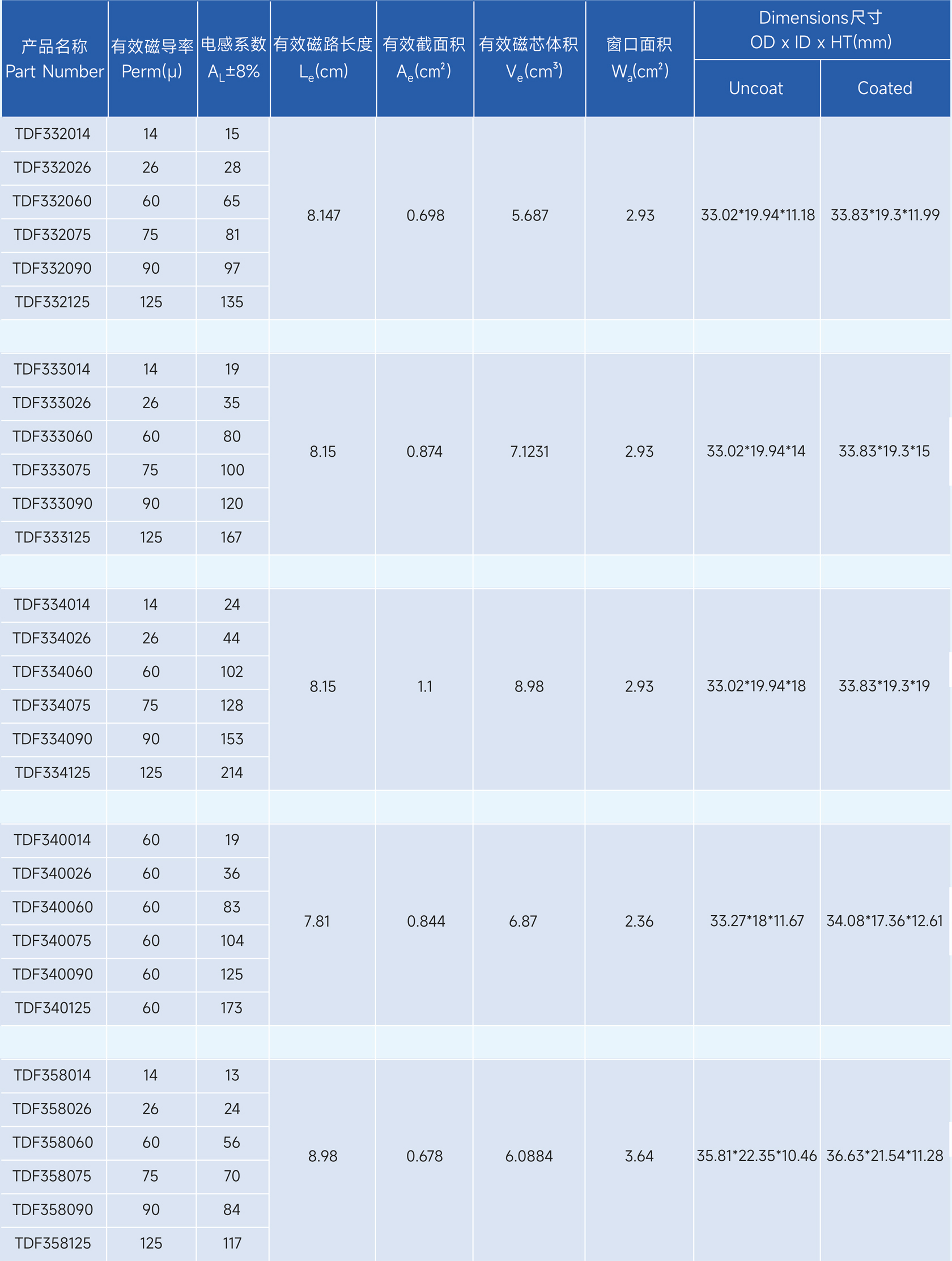

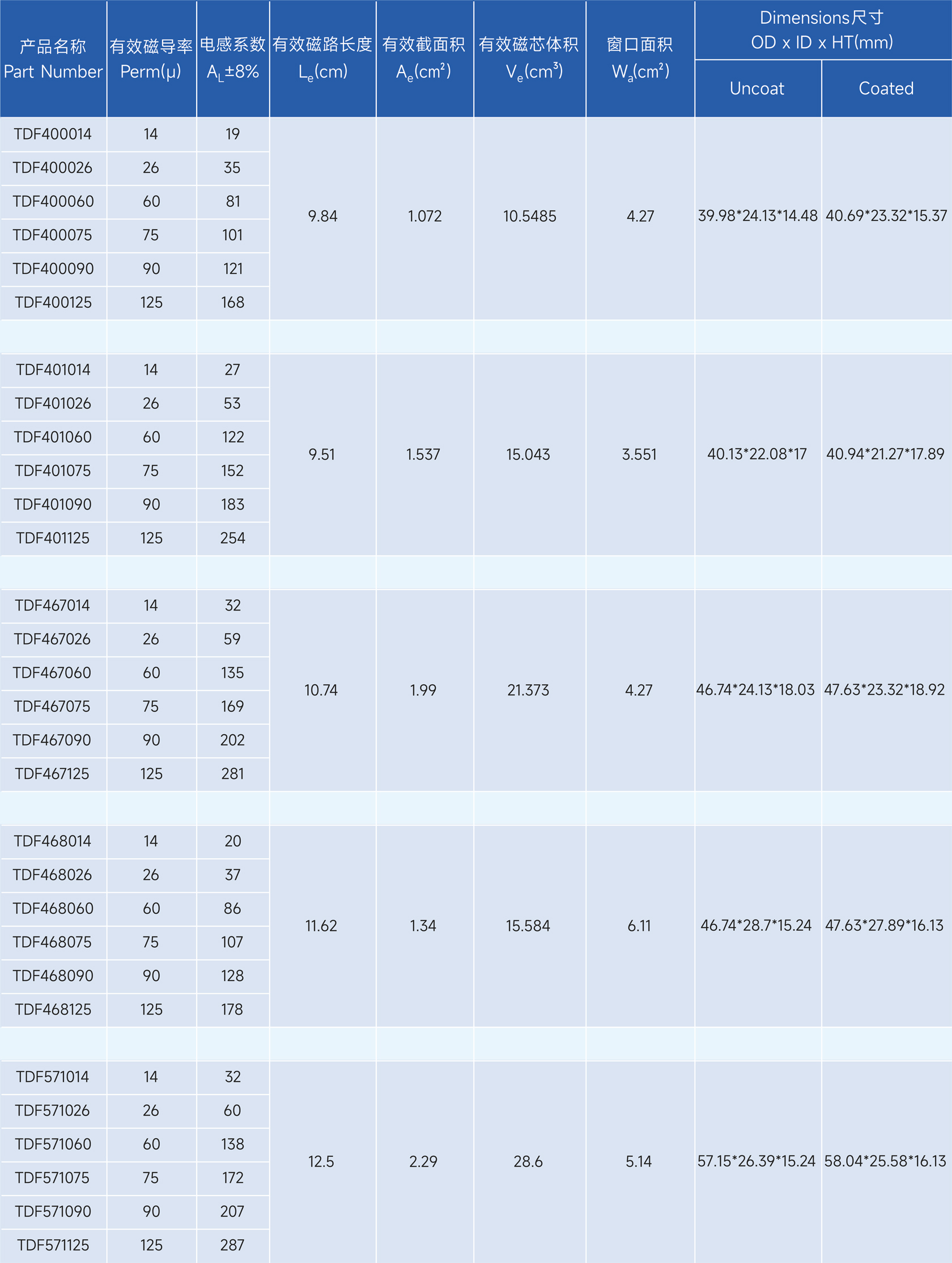

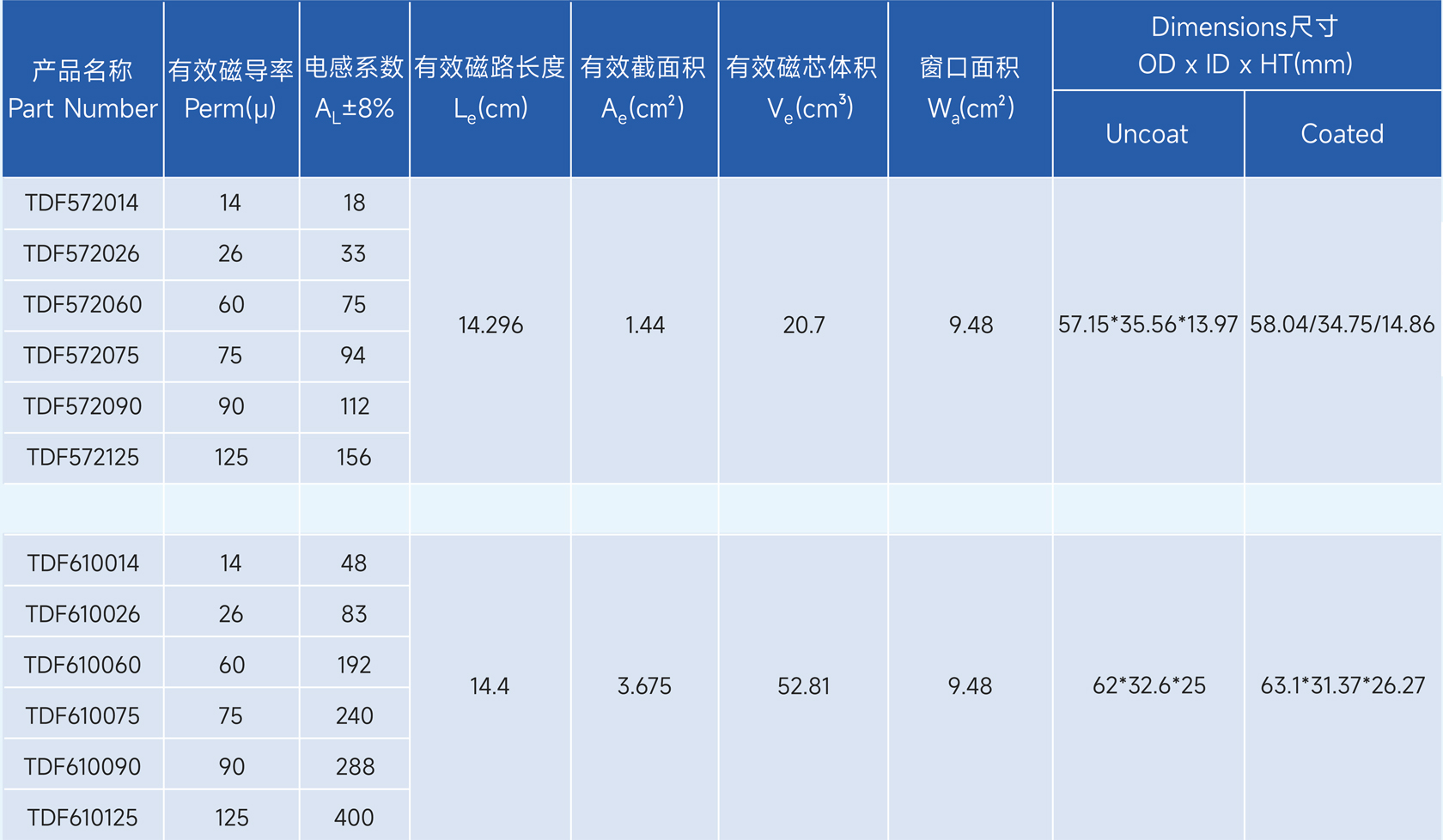

Core Data | AL nH/N2 (nominal) | 横截面积 Ae | 磁路长度 Le | 磁芯体积 Ve | OD max (Coated) | ID min (Coated) | HT max (Coated) | |||||
| 14µ | 26µ | 60µ | 75µ | 90µ | 125µ | cm2 | cm | cm3 | mm | mm | mm | |
| 102 | 7.0 | 14 | 32 | 40 | 48 | 66 | 0.1000 | 2.3800 | 0.2380 | 10.80 | 4.57 | 4.57 |
| 112 | 6.0 | 11 | 26 | 32 | 38 | 53 | 0.0906 | 2.6900 | 0.2437 | 11.89 | 5.89 | 4.72 |
| 127 | 6.4 | 12 | 27 | 34 | 40 | 56 | 0.1140 | 3.1200 | 0.3557 | 13.46 | 6.99 | 5.51 |
| 166 | 8.0 | 15 | 35 | 43 | 52 | 72 | 0.1920 | 4.1100 | 0.7891 | 17.40 | 9.53 | 7.11 |
| 172 | 10.0 | 19 | 43 | 53 | 64 | 89 | 0.2320 | 4.1400 | 0.9605 | 18.03 | 9.02 | 7.11 |
| 203 | 7.8 | 14 | 32 | 41 | 49 | 68 | 0.2260 | 5.0900 | 1.1510 | 21.08 | 12.07 | 7.11 |
| 229 | 9.9 | 19 | 43 | 54 | 65 | 90 | 0.3310 | 5.6700 | 1.8771 | 23.62 | 13.39 | 8.38 |
| 234 | 12.0 | 22 | 51 | 63 | 76 | 105 | 0.3880 | 5.8800 | 2.2814 | 24.28 | 13.77 | 9.70 |
| 270 | 18.0 | 32 | 75 | 94 | 113 | 157 | 0.6540 | 6.3500 | 4.1540 | 27.69 | 14.10 | 11.99 |
| 271 | 13.8 | 25.5 | 59 | 73.7 | 88.4 | 123 | 0.8190 | 6.3500 | 5.2000 | 27.69 | 14.10 | 9.45 |
| 272 | 22.0 | 40.7 | 94 | 117.5 | 141 | 195.8 | 1.0100 | 6.3500 | 6.4300 | 27.81 | 14.10 | 15.00 |
| 330 | 14.0 | 28 | 61 | 76 | 91 | 127 | 0.6720 | 8.1500 | 5.4768 | 33.83 | 19.30 | 11.61 |
| 331 | 11.9 | 22.1 | 51 | 63.8 | 76.5 | 109 | 0.5510 | 8.1470 | 4.4900 | 33.83 | 19.30 | 9.70 |
| 332 | 15.0 | 28 | 65 | 80.8 | 96.9 | 135 | 0.6980 | 8.1470 | 5.6870 | 33.83 | 19.30 | 11.99 |
| 333 | 18.7 | 34.7 | 80 | 100 | 120 | 166.7 | 0.8740 | 8.1500 | 7.1231 | 33.83 | 19.30 | 15.00 |
| 334 | 23.8 | 44 | 102 | 127.5 | 153 | 214 | 1.1000 | 8.1500 | 8.9800 | 33.83 | 19.30 | 19.00 |
| 358 | 13.0 | 24 | 56 | 70 | 84.3 | 117 | 0.6780 | 8.9800 | 6.0884 | 36.63 | 21.54 | 11.28 |
| 400 | 19.0 | 35 | 81 | 101 | 121 | 168 | 1.0720 | 9.8400 | 10.5485 | 40.69 | 23.32 | 15.37 |
| 467 | 32.0 | 59 | 135 | 169 | 202 | 281 | 1.9900 | 10.7400 | 21.3730 | 47.63 | 23.32 | 18.92 |
| 468 | 20.0 | 37 | 86 | 107 | 128 | 178 | 1.3400 | 211.6300 | 15.5840 | 47.63 | 27.89 | 16.13 |
| 508 | 17.0 | 32 | 73 | 91 | 109 | 152 | 1.2510 | 12.7300 | 15.9290 | 51.69 | 30.94 | 14.35 |
| 571 | 32.0 | 60 | 138 | 172 | 207 | 287 | 2.2900 | 12.5000 | 28.6000 | 58.04 | 25.58 | 16.13 |
| 572 | 18.0 | 33 | 75 | 94 | 112 | 156 | 2.2900 | 12.5000 | 28.6000 | 58.04 | 34.75 | 14.86 |
| 610 | 48.0 | 89 | 206 | 258 | 310 | 430 | 3.6750 | 7.7300 | 52.8100 | 64.77 | 30.48 | 25.90 |
| 741 | 48.0 | 89 | 206 | 257 | 309 | 429 | 4.9400 | 18.4000 | 90.9000 | 75.20 | 44.10 | 36.20 |
